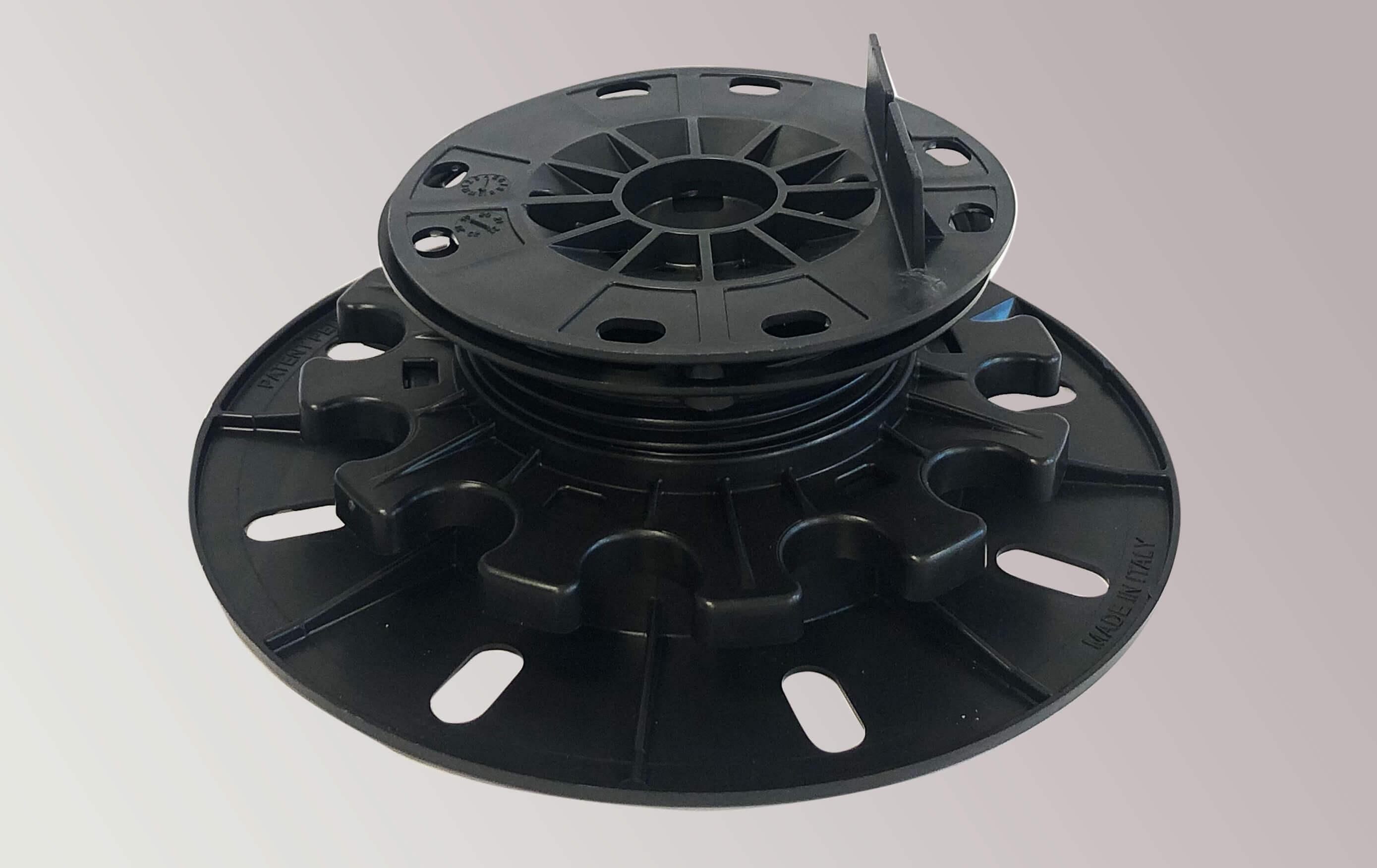

4166ML-SL-DF Self-Levelling Joist Support Pedestals

Self-levelling Joist Support Pedestal - designed for use on sloping surfaces. Adjustable from 41 to 66mm (1.6" to 2.6") - height extendable with extensions

StrataRise Multi-Level 4166 Self-Levelling Pedestals will automatically compensate for slopes from 0° to 5° and are adjustable in height from 41mm to 66mm (1.6" to 2.6"). The adjustable height can be increased by using one or more of our QuickClick, bayonet fitting, extension pieces to achieve the required height range. The system can be extended to 500mm (20") high, or more as required.

The Self-levelling Joist Support Pedestal makes it easy to achieve perfect levelling of beams or joists for flooring or decking support. The system is very easy to use and aids quick, precise and professional installation.

Each support is composed of a threaded self-levelling head section, with a fixing flange with screw slot for attaching to the joist or beam. The head is wide enough to accept joists up to 3" (75mm) wide and is suitable for all common heights. For wider joists we recommend placing alternate pedestals from opposite sides of the joist.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the joists thus allowing for extremely easy and fast installation.

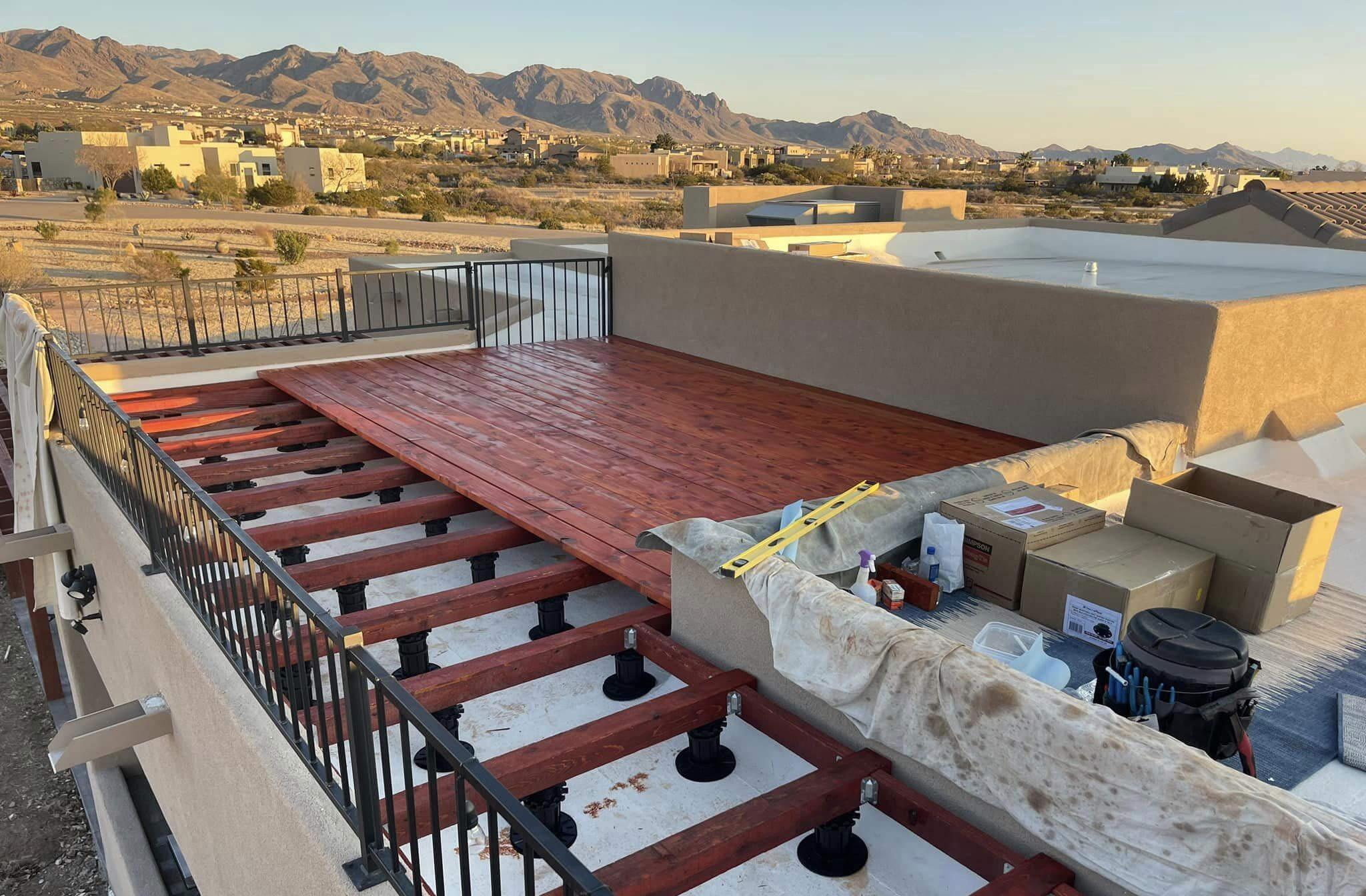

The large 200mm (8”) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional 3mm thick anti-slip, cushioning, rubber base ring is available for use on membranes, etc. This effectively reduces transmitted noise where decks are mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

4166ML self-leveling pedestal supports are tested to withstand loads of 1430lbs (650Kg) at their weakest setting, (i.e. maximum height adjustment with just one thread engaged). The normal spacing apart for the 4166ML-SL-DF is at 500mm to 600mm (20" to 24") centers for most projects, potentially saving up to 50% on units required for many projects when compared with other systems.

StrataRise Pedestals ... the professional's choice!

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

This versatile pedestal support can be used with most types of support joists and beams for flooring and decking.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are the fastest and easiest to work with, allowing precise adjustment without any need to lift off the joists to make adjustments. Bayonet fitting extenders enable easy customisation to any height. With just 4 components (pedestal plus 3 sizes of extenders) you have the complete system to suit all heights and nearly every application. Low profile versions are also available - see our 2442LP-SL Range.
