StrataBridge Permeable Safety Grid Tile System

This no fall-through safety platform system provides lippage free surfaces for floating floors. For  use in public and private locations.

No fall-through safety platform system

The StrataBridge permeable no fall-through platform system for floating floors has been specially developed to meet the safety requirements for raised floating floors and walkways. The system enables installation of tiled and other floor surfaces on to a fully supported, integrated plastic grid tile system.

The system offers two types of tile surface:

  1. an open pattern, designed for use supporting any size or shape of ceramic, concrete, marble or other surface tiling;
  2. a closed pattern which can be used as a standalone surface, or which can be covered with artificial grass, external carpeting or other suitable materials.

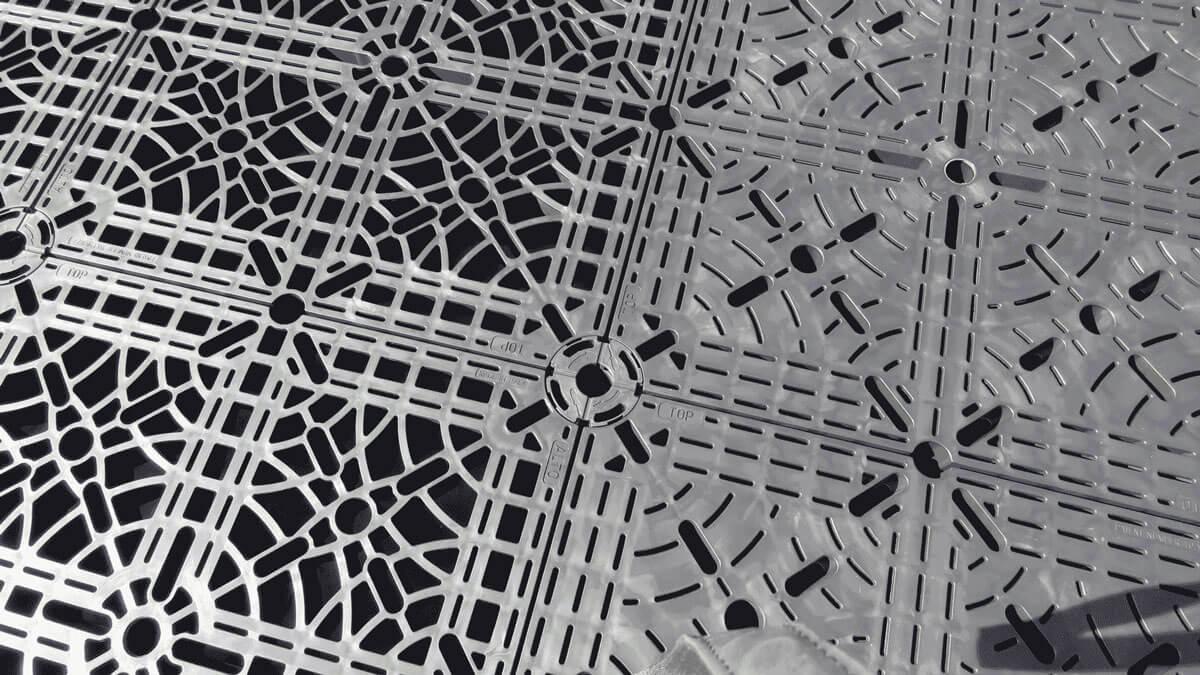

Two types of No Fall-through Safety StrataBridge Tiles assembled

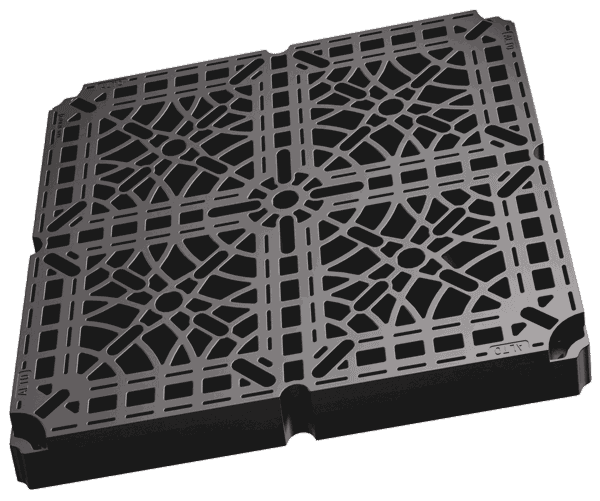

StrataBridge No Fall-through SafetyTile - Open Pattern for Tiled and Paved floating floors

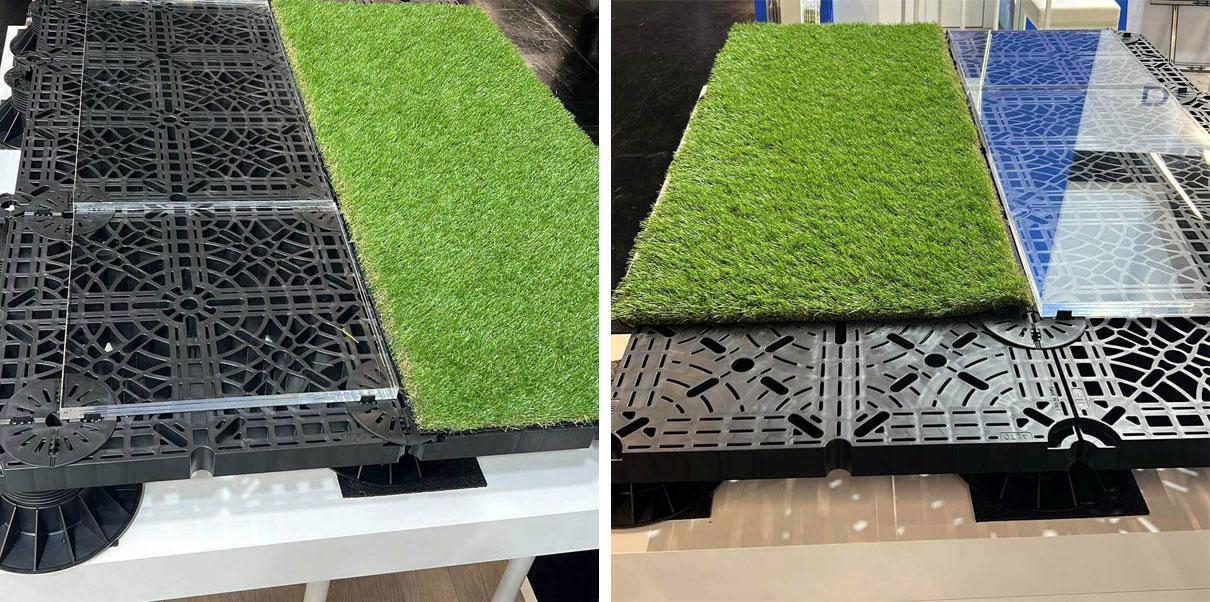

StrataBridge No Fall-through Safety Tile - Closed Pattern for external carpet and artificial grass coverings
The tiles are designed for use with a special locking connector joint which securely links them together to form a fully integrated, perfectly flat, lippage free surface.

The system is designed to be mounted on any adjustable paving pedestal from the StrataRise range, thus offering the possibility to create floating floors at any required height, even on sloping surfaces.  When used with the Hercules 3000 series pedestals all levelling adjustments can be made from above using a special adjustment key.
The StrataBridge system is ideal for use across a wide spectrum of applications and offers the following benefits:
  • provides an extremely strong, load bearing, unified structure. Each tile can support up to 4.28kN (962 lbf);
  • can be surfaced with any size or shape of ceramic, concrete, marble or other paving tile, providing 100% support to allow the use of thinner materials and larger tile sizes without risk of breakage;
  • a special moulded thermoplastic rubber mat with separator fins (TER09-1131) is available to drastically reduce footfall noise and guarantee a consistent joint between the pavers;
  • provides NO FALL-THROUGH protection in case of accidental breakage of the covering tiles or surfacing. Ideal for public areas and anywhere else where safety is a paramount requirement;
  • the tile design offers flexible positioning of pedestal supports, to suit any requirement, with 13 mounting positions provided under each tile.
  • extremely quick and easy to assemble, and to adjust heights and levels using StrataRise pedestals - adjust from above with Hercules range;
  • simple to dismantle and reconfigure for different uses if required;
  • unique locking collar connectors are easy to fit - spare locking connectors will nest and can be used as a screwdriver for extra ease when installing or dismantling. The locking collars can be cut into halves for use at the perimeters;
  • the apertures in the tile surfaces allow rain and storm water to drain through to the underlying surface;
  • made from recycled reinforced polypropylene, the system is durable, temperature resistant and eco-friendly as it can be recycled again at end of life.
Locking Connectors for StrataBridge Safety Tile system
Montage of No Fall-through Safety Stratabridge tile pictures

Uses include:

  • raised floating floors and walkways with tiled, or permeable, surfaces;
  • patios and pathways;
  • rooftop walkways and service access;
  • mounting platforms for rooftop or ground level air conditioning, or other plant installations;
  • creating level, temporary flooring for outdoor events, for marquees, accommodation, tents, toilets and other outdoor facilities at festivals and events.

The StrataBridge system is designed to be easy to use, labour saving, suitable for a wide range of applications, with the flexibility to adapt for use in most environments and on any firm surface. The rugged nature of the product ensures excellent service under all conditions, including repeated assembly and disassembly when used for short term event provisions.

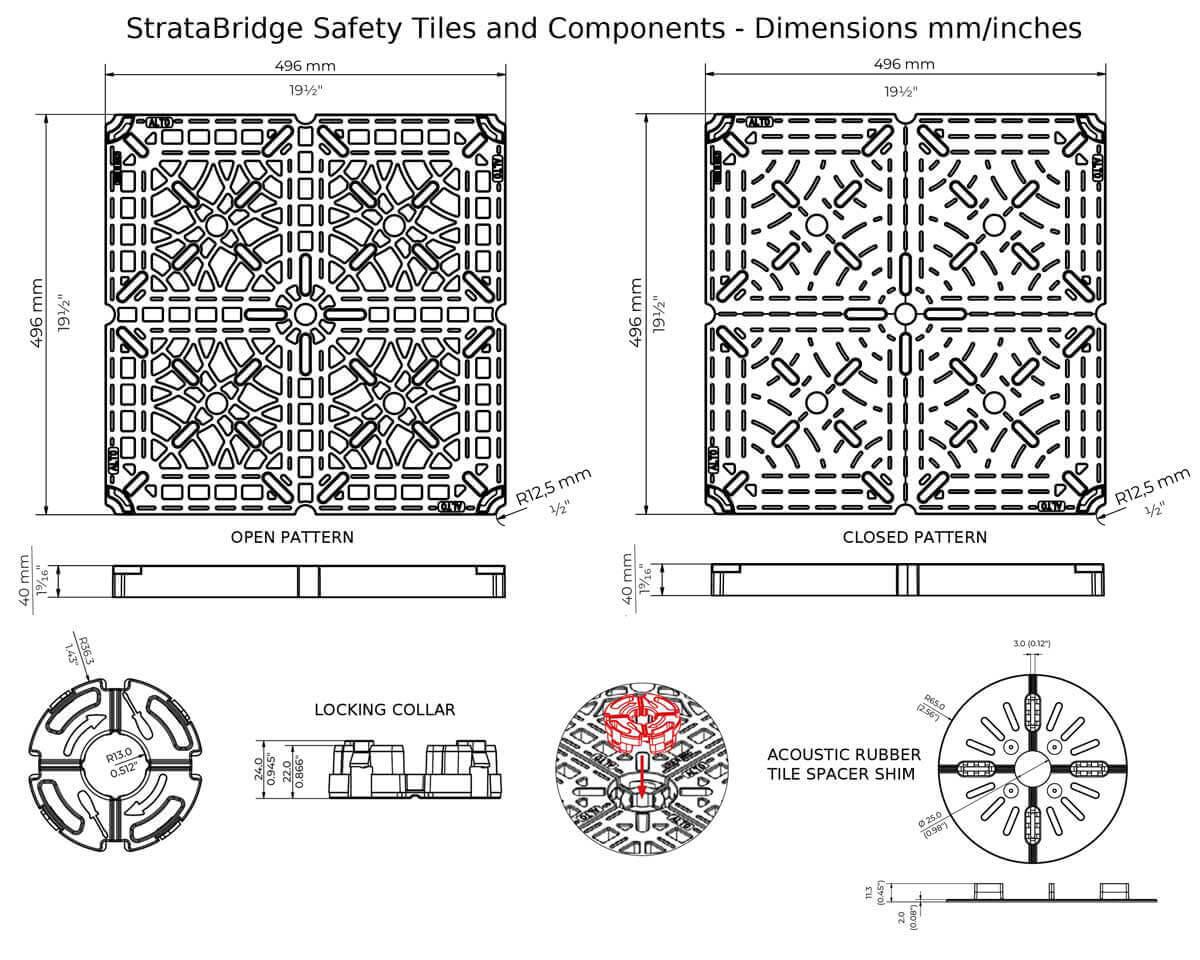

StrataBridge No Fall-through Safety Tiles Technical Information - Demensions

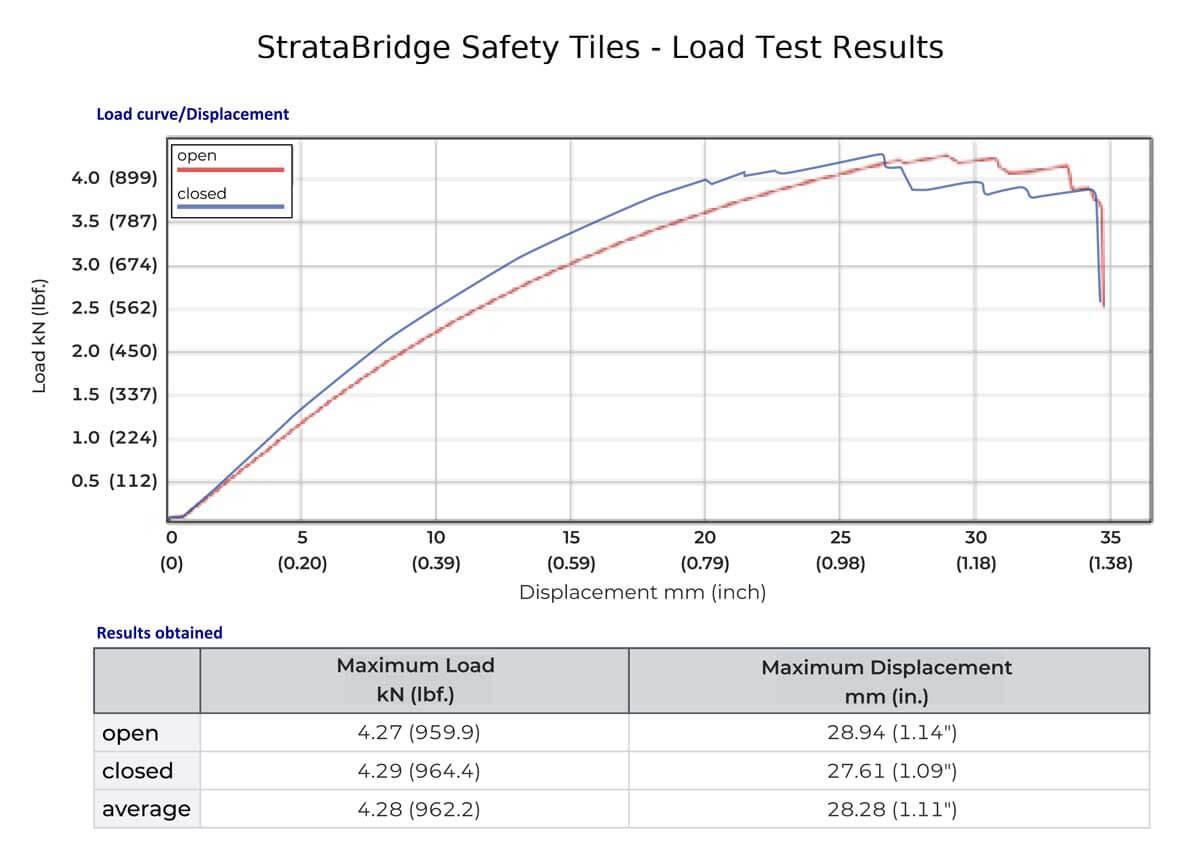

StrataBridge Load Test Technical Information.
Ref No.DescriptionDimensions [mm (in)]BarcodeBox Qty.
BT-500-OG-04StrataBridge Floor Tile - Open Pattern with Locking connectors - Pack of 4500 x 500 x 40 (20 x 20 x 1 9/16")37 91941 30059 14 pcs.
BT-500-OG-128StrataBridge Floor Tile - Open Pattern - Pallet500 x 500 x 40 (20 x 20 x 1 9/16")37 91941 30060 7128 pcs.
BT-500-CG-04StrataBridge Floor Tile - Closed Pattern with Locking connectors - Pack of 4500 x 500 x 40 (20 x 20 x 1 9/16")37 91941 30062 14 pcs.
BT-500-CG-128StrataBridge Floor Tile - Closed Pattern - Pallet500 x 500 x 40 (20 x 20 x 1 9/16")37 91941 30063 8128 pcs.
BT-CONNECT-65StrataBridge Locking Connector - Box of 65-37 91941 30065 265 pcs.
BT-CONNECT-15StrataBridge Locking Connector - 15 Pack-37 91941 30066 915 pcs.
PS3-02-100Acoustic Rubber Paver support- 3mm (1/8") spacer fins - Box 100130mm x 2mm (5.12" x 5/64")(37 91941 30067 6100 pcs.
PS3-02-10Acoustic Rubber Paver support- 3mm (1/8") spacer fins - 10 pack130mm x 2mm (5.12" x 5/64")37 91941 30068 310 pcs.
