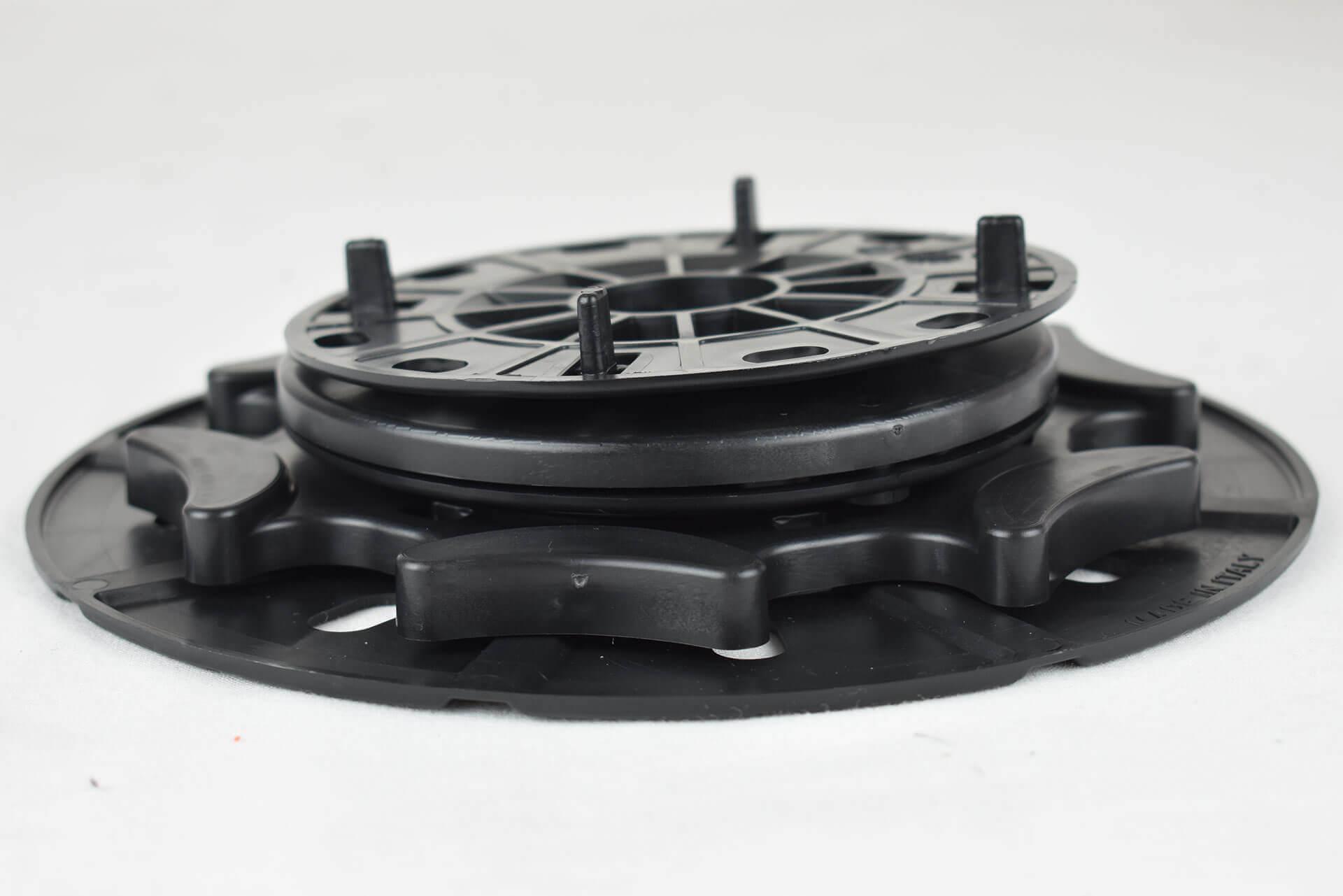

2442LP-SL-DF Low Profile Self-Levelling Paver Support Pedestals

The StrataRise 2442 Low-profile Self-levelling Paver Pedestal will automatically compensate for slopes from 0° to 5° and is specially designed for use in areas where low threshold heights are encountered. The self-Levelling pedestals adjust from 24mm to 33mm (0.95" to 1.30") as standard, or from 33mm to 42mm (1.30" to 1.65") with the addition of the 9mm (3/8") extender ring that is included with each pedestal. This can be inserted into the base plate if required.

This support is particularly suited for installations of decking and patio areas on sloping flat roofs as well as for general use on sloping surfaces both externally and internally.  Each support is composed of a threaded self-Leveling head section, with 4 tabs either 2 mm (5/64") or 4mm (5/32") in width for tile, slab or paver spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centers of large slabs, or at edges.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation. As standard, each Low-Level 2442 pedestal comes complete with one 9mm (0.35") extender ring (this can be fitted by lifting the head out of the base, inserting the ring and replacing the head).

The large 200mm (8”) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where decks are mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

We recommend the use of our optional acoustic cushioning rings for the support head area for tile and paver installations. These help to bed tile corners securely, prevent any rattling, and reduce transmitted noise through the support system.

2442LP Low-profile Self-levelling Paver Pedestal supports are tested to withstand loads of 1430 lbs (650Kg) at their weakest setting, (i.e. maximum height adjustment with just one thread engaged).

StrataRise Pedestals ... the professional's choice!

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

Available in two versions, this versatile pedestal support can be used with any type of self-supporting tile or paver.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are the fastest and easiest to work with, allowing precise adjustment without any need to lift off the paver or tile to make adjustments. Each 2442LP Pedestal is supplied with one 9mm extension ring as standard.
