ShimLevel Construction Shim and Levelling Wedge Kit

Suitable for multiple applications in the construction industry

ShimLevel

ShimLevel wedges and spacer shims offer a superior solution for multiple applications in the construction industry. These wedges and shims can be used during the installation and fixing of doors and windows frames and for many other applications where a fast and modular levelling solution is required.

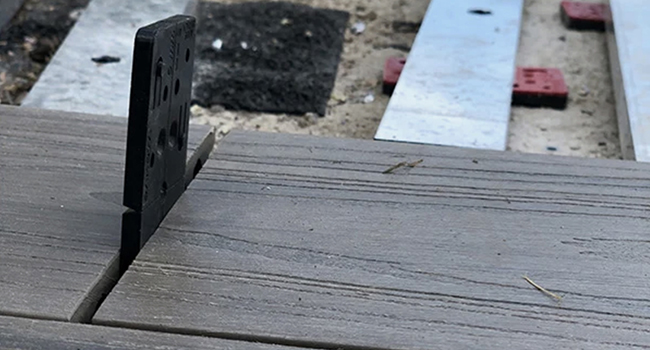

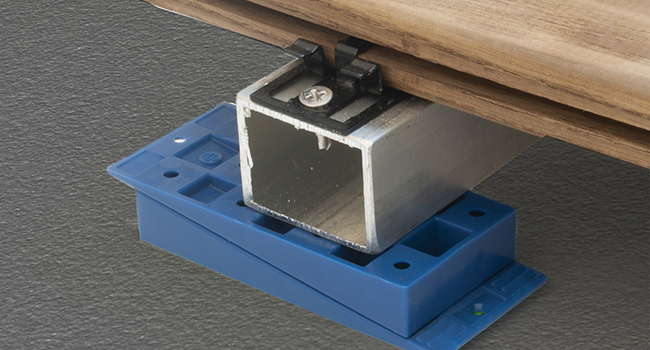

Widely used during the installation of external raised decking, the combined use of 2 iwedges guarantees precision adjustment of the joists and the use of the shims allows levelling of the surface throughout the under-structure of the decking itself.

With a unique interlocking design, wedges and shims can be used in multiples to create the required height/thickness. Their robust and patented design ensures no slipping, cracking or splitting.

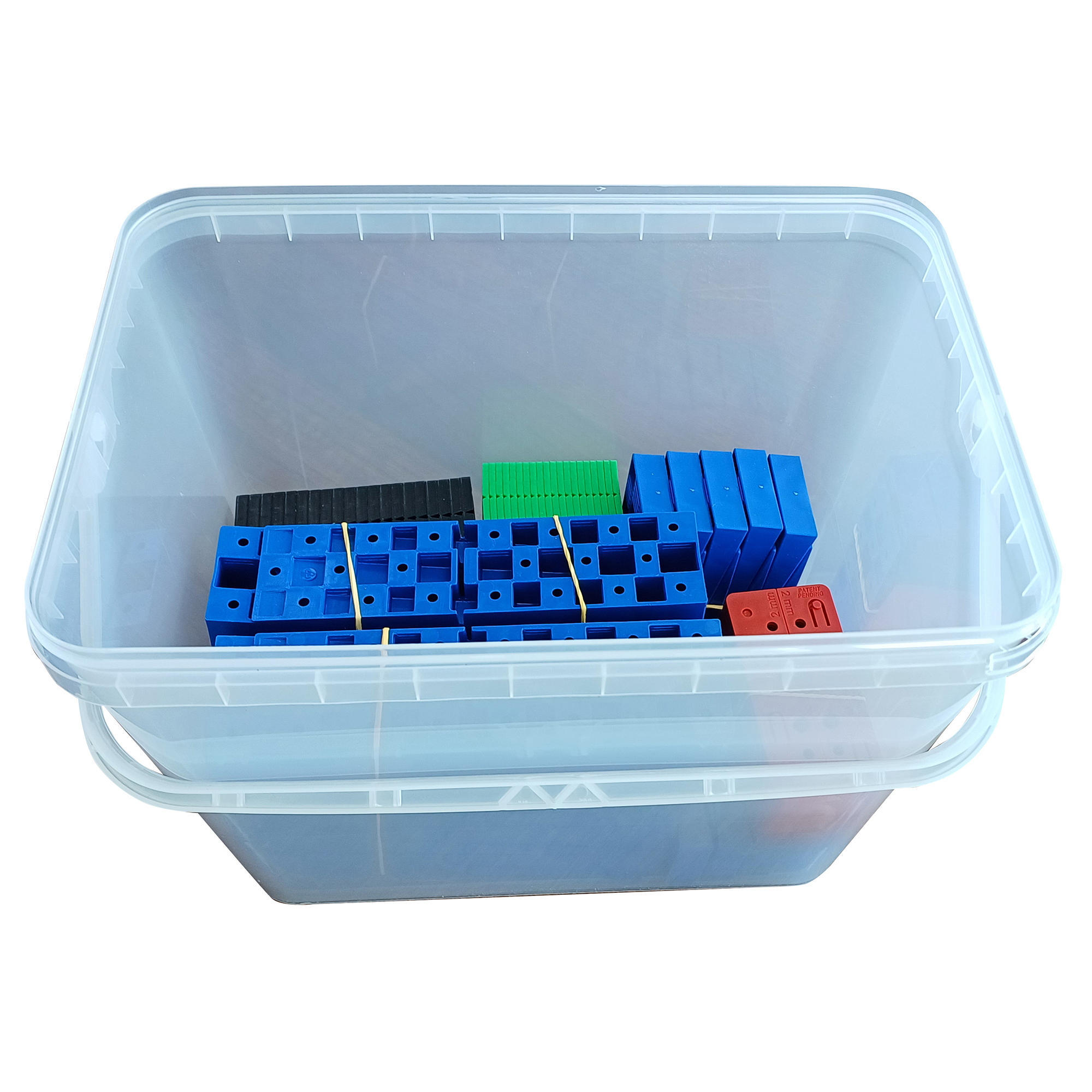

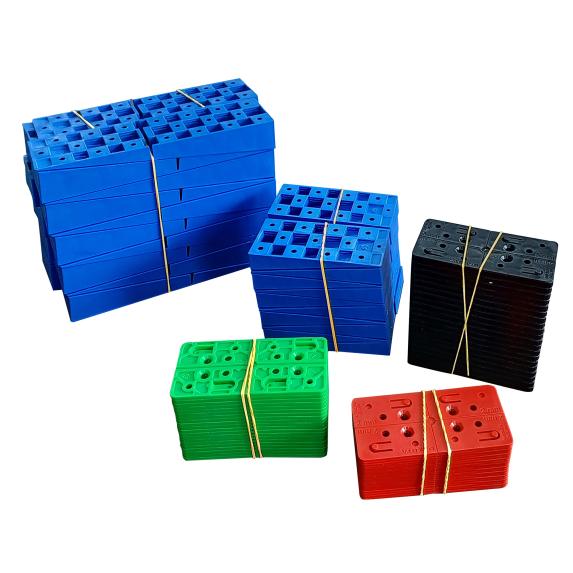

ShimLevel can be bought as a 100 piece kit in a handy reusable container, with 2mm, 3mm and 5mm spacer shims (20 of each) and 90mm and 170mm interlocking wedges (20 of each). All items can also be bought separately in bags, or for larger volume requirements in boxes.

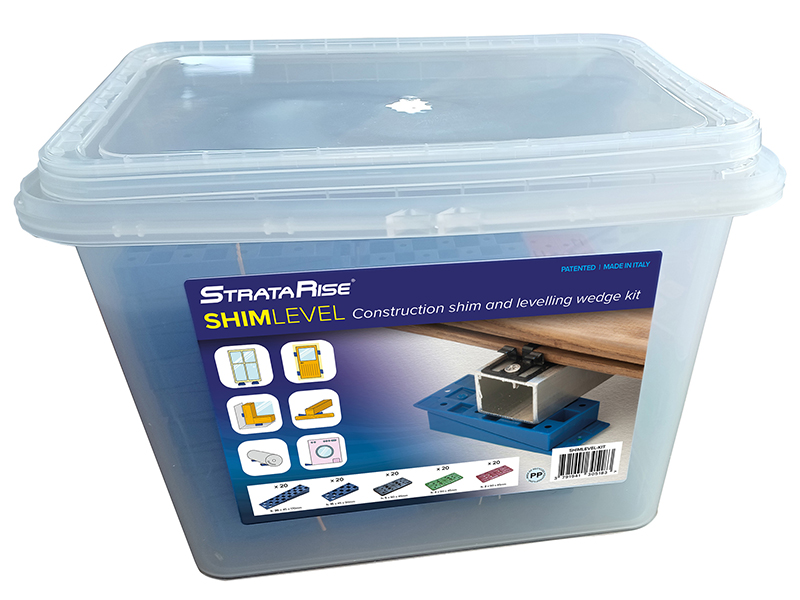

StrataRise ShimLevel Construction Shim and Wedge Kit

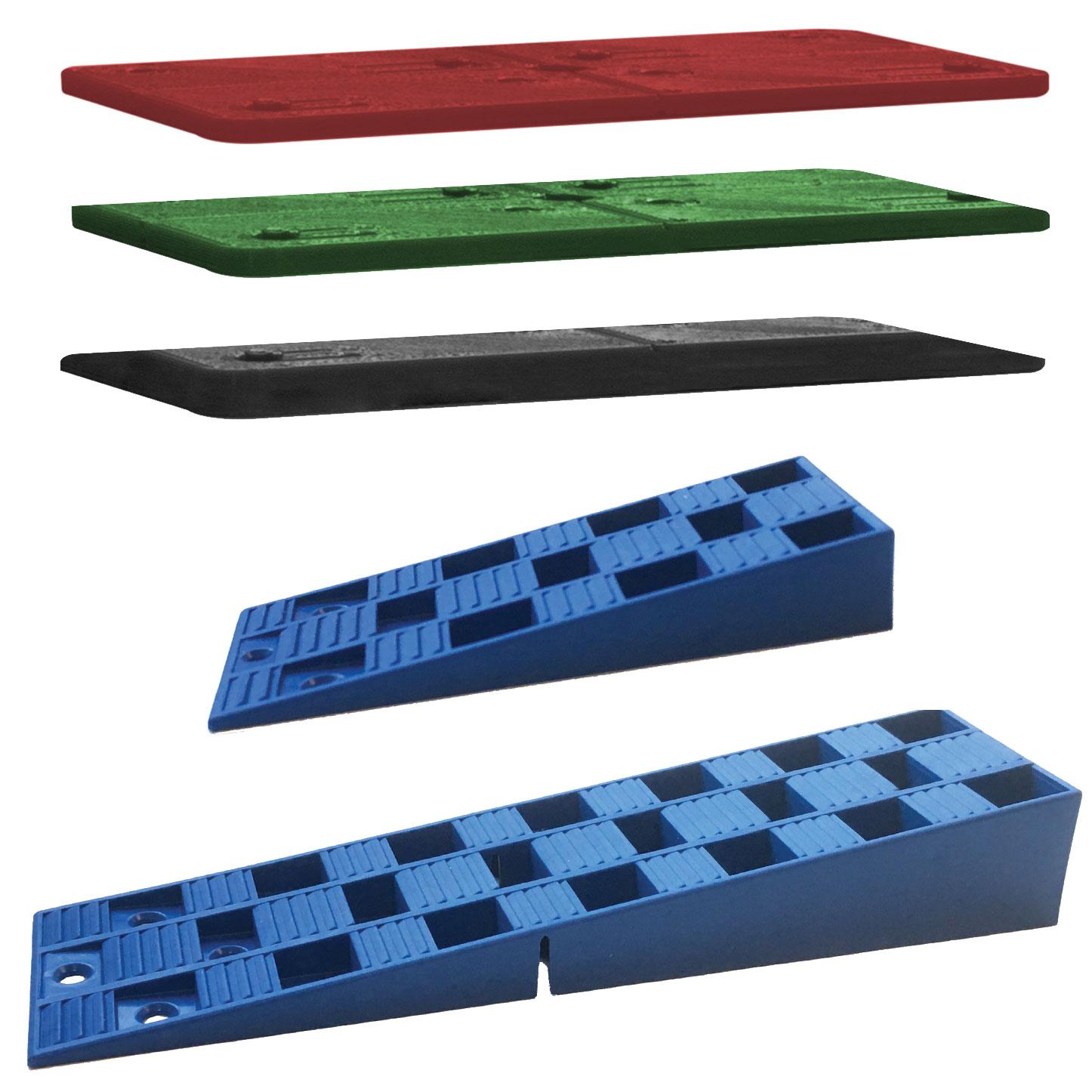

Unique interlocking design. A pair of 170mm wedges are designed to allow them to be easily stacked to create a level surface of up to 50mm height - with no slipping. Each wedge can be split into two pieces where desirable.
Each spacer shim can be split into 2 or 4 smaller pieces at the pre-cut lines and then interlocked and used in multiples or combinations to create whatever thicknesses are needed. ShimLevel shims and wedges will not rot, shrink, crack, split or slip.
Ref No.DescriptionDims (mm)Bag Qty.
SL-KIT-100ShimLevel Kit – 100 pieces-1 pc.
SL-SHIM-2-40Shims – 2mm90 x 4540 pcs.
SL-SHIM-2-1120Shims – 2mm90 x 451,120 pcs.
SL-SHIM-3-40Shims – 3mm90 x 4540 pcs.
SL-SHIM-3-800Shims – 3mm90 x 45800 pcs.
SL-SHIM-5-40Shims – 5mm90 x 4540 pcs.
SL-SHIM-5-800Shims – 5mm90 x 45800 pcs.
SL-WEDGE-90-40Wedges – 90mm45 x 1540 pcs.
SL-WEDGE-90-320Wedges – 90mm45 x 15320 pcs.
SL-WEDGE-170-20Wedges – 170mm45 x 1520 pcs.
SL-WEDGE-170-120Wedges – 170mm45 x 15120 pcs.
